Swiss Type CNC Lathe
Diamond CSL 42-2Y II
42-2Y II

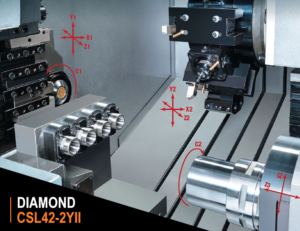

Main and Sub-Spindle are up to 42mm with12 stations power turret. Both built-in spindle are with CS axis indexing. This helps to obtain spindle rotation high accuracy and better surface finish during cutting operation.
Introduction

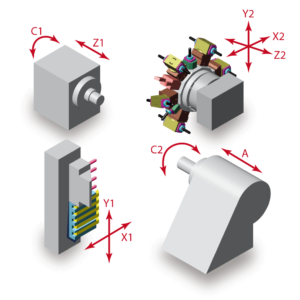

Diamond CSL 42-2YII is upgraded with MITSUBISHI 830 controller which possessed control axis superimposition function. It offers up to 10 axes complex manufacturing capability and it can simultaneously to process at 3 channels.
Using Live Bushing with Guide Bush
Using Rough Material Bushing without Guide Bush

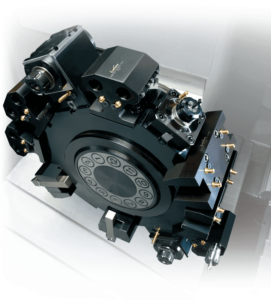

12 Stations Power Turret Can Do Double-side Processing
4 pcs Cross Working Driven Tool Holder
5 pcs O.D. Turning Tool Holder
4 pcs Back Working Driven Tool Holder
Standard Accessories
- Main spindle
- Sub-spindle
- CS Axis
- Working Light
- Coolant System
- Part off Detective Sensor
- Live Bushing
- Chip Conveyer
- Chip Bucket

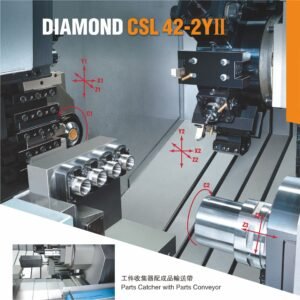

- Part Catcher
- 5 pcs O.D. Turning Tool Holder
- 4 pcs Cross Working Driven Tool Holder
- 4 pcs Double Side Turning Holder (Turret)
- 4 pcs Double Boring Bar Holder (Turret)
- 2 pcs Axial Drilling and Milling Head (Turret)
- 2 pcs Radial Drilling and Milling Double Head (Turret)
- 4 pcs Back Working DrivenTool Holder
- Rough Material Bushing(Max. Machining = Bar Diameter x 3)
Specification
| Items | Y1 (System 1) | Y2 (System 2) | (System 3) |
|---|---|---|---|
| Working Range | |||
| Max. Turning Dia. | Ø42 mm | Ø42 mm | |
| Max. Machining Length | 280 mm | ||
| Max. Drilling Capacity | Ø30 mm | Ø30 mm | |
| Max. Tapping Capacity | M16 | M16 | |
| Tooling System | |||
| O.D. Turning Tool | 5 | ||
| O.D. Turning Tool Dimension | □20x20x120 | ||
| Cross Tool (power – driven tool) | 4 | ||
| Cross Tool Dimension | 16 mm (ER25) | ||
| Cross Tool Speed | 200~6000 rpm | ||
| Back I.D. Tool | 4 | ||
| Back I.D. Tool Dimension | Ø25 mm | ||
| Back Working Driven Tool | 4 | ||
| Back Working Driven Tool Dimension | 16 mm (ER25) | ||
| Back Working Driven Tool Speed | 200~6000 r.p.m. | ||
| Power Turret | |||
| Power – driven Tool / Station | 12 | ||
| O.D. Tool Dimension | □20 x 20 | ||
| I.D. Tool Dimension | Ø25 mm | ||
| Max. O.D. Turning Tool / Station | 6 | ||
| Max. I.D. bore Tool / Station | 6 | ||
| Power – driven Tool Dimension | 16 mm (ER25) | ||
| Power – driven Tool Speed | 200~4000 rpm | ||
| Max. Radial Mill / Drill Tool / Station | 12 | ||
| Max. Axial Mill / Drill Tool / Station | 12 | ||
| Spindle | |||
| Spindle Hole Dia. | Ø42 mm | ||
| Spindle Speed | 200~6000 rpm | ||
| Sub-spindle | |||
| Sub-spindle Hole Dia. | Ø42mm | ||
| Sub-spindle Speed | 200~6000rpm | ||
| Max. Length for Front Ejection | 120 mm | ||
| Sub-spindle Max. Drilling Dia. | Ø30 mm | ||
| Sub-spindle Max. Tapping Dia. | M16 | ||
| Rapid Traverse Speed | |||
| X1, Z1, Y1, X2, Z2, Y2, X3, Z3 Axes | 30 m/min | 30m/min | 30 m/min |
| Travel | |||
| X1 axis | 45 mm | ||
| Z1 axis | 300 mm | ||
| Y1 axis | 360 mm | ||
| X2 axis | 140 mm | ||
| Z2 axis | 470 mm | ||
| Y2 axis | 170 mm | ||
| X3 Axis | 245 mm | ||
| Z3 Axis | 450 mm | ||
| Motors | |||
| Main / Sub-Spindle | 7.5 kW | 7.5 kW | |
| Y1, Y2 axes | 1.5kW | 2.2kW | |
| X1, Z1, X2, Z2, X3, Z3 Axes | 1.0 kW | 1.0 kW | 1.0 kW |
| Rotary Tools | 2.2 kW | 2.2 kW | 2.2 kW |
| Coolant Pump | 1 HP | 1 HP | |
| Lubrication | 25 W | 25 W | |
| Machine Dimensions | |||
| Center Height | 990 mm | ||
| Weight | 6480 kgs | ||
| Dimension | 3600 x 2650 x 2130 mm | ||
| Air | |||
| Air Pressure | 5kg/cm | ||
| Air Supply | 10L/min | ||
* We reserve the rights to change the design without any prior notification.
